Documentation Plugin

(R20 Windows Only)

A plugin for developers to help you create documentation for your new plugins.

As an example the official Plugins 4D Documentation was created with this system.

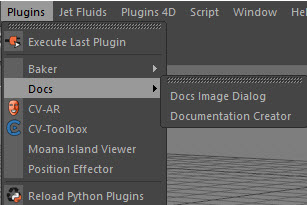

Menu


The Documentation Creator and Docs Image Dialog can be found under the Plugins Menu, and also the Plugins 4D menu (if you have the core plugin or are an existing Bundle owner).

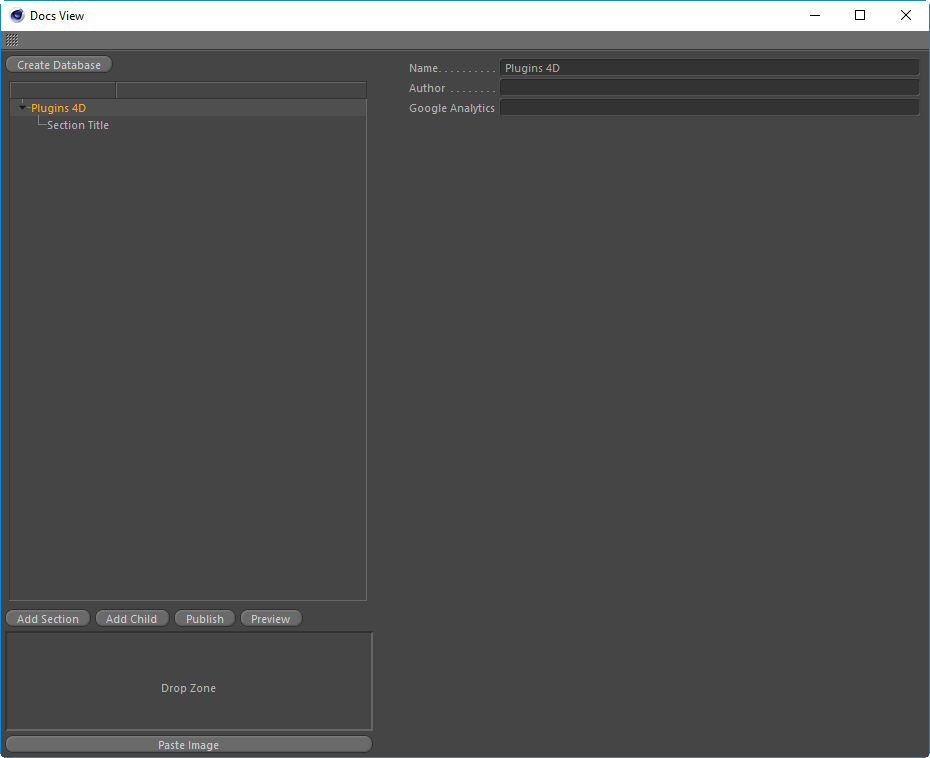

Documentation Creator Overview

Create Database

First you must save a blank C4D scene. Next press the Create Database button to generate the sql database that lives next to the c4d file inside a Documentation folder. You only need to press this once the first time you wish to create documentation.

Add Section

Will add a new section directly beneath the currently selected one in the tree view.

Add Child

Will add a new section as a child of the currently selected one in the tree view.

Publish

Will publish out the html files to the documentation/published folder. The contents of this folder can then be directly uploaded to any web hosting service.

Preview

Will display the preview window in C4D. When you make changes to your section or titles you will need to click out of the section window before the preview window will refresh.

DropZone

Drag and drop any image from disk, or a command from the Customize Commands menu dialog in C4D. The image will be added to the documentation/images folder and a thumbnail is also created.

Afterwards in your section press “Ctrl+V” to paste the code to add the image or command icon to your section.

Paste Image

If you have copied an image into your clipboard from PhotoShop or another editor or screen capture program, then pressing this will save the file to the documentation/images folder and afterwards you can press “Ctrl+V” to paste the code into the section to add it to your page.


Root Node


When you have the top most root node selected you will see the above data.

Name

This is the name that will be used as the title for your documentation when you publish.

Author

This is currently unused.

Google Analytics

Insert your Google Analytics tracking code if you wish to included the analytics in your published files. If you do not add a code then no analytics script will be added to the documentation.

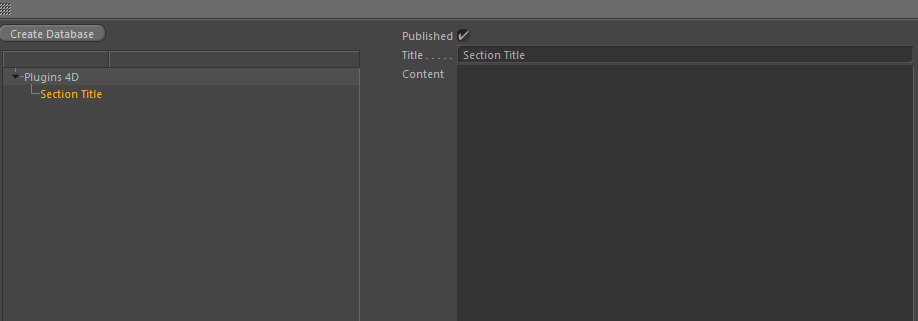

Section Node


A section node is a page in your documentation.

Published

When checked it will publish out the HTML when you press publish.

Title

This will be the name of the page in the left hand menu when published as well as being displayed a the top of the page content as an H1 heading.

Content

This is the Markdown content for your page.


Docs Image Dialog


This dialog will contain all the images you have added to your docs system.

Selecting an image will add its ID to your clipboard. You can now Ctrl+V to paste the code into your section and the image will then be displayed and exported when published.

You can select individual, or multiple images, and choose to delete them via a right click menu.


MarkDown

This plugin uses the Markdown language. For more information about what you can do with it please refer to the following documentation.

This Markdown implementation is based on the CPP-Markdown project on GitHub.


Updates

17/2/2019

  • Images now included the Alt text name of the command when published. You must drag and drop in the Command into the Drop Zone and paste your commands again into the section to get the Alt Text.

  • The pasted text will look similar to this

    • ![Add Doodle Frame][COMMAND_1022215]

  • And the published HTML will look like

    • <p><img src="images/COMMAND_1022215.png" alt="Add Doodle Frame"/></p>

16/2/2019

  • Initial Release
